Cut to Length - Pivot Shear

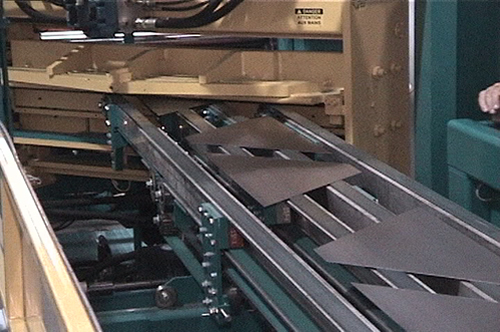

The Pivot Shear will produce triangles, trapezoids, parallelograms and square or rectangular blanks direct from coil stock with an absolute minimum of scrap. By utilizing a state of the art microprocessor based control and Closed Loop Servo Drive System, machine accuracy and reliability are ensured. The Pivot Shear’s Microprocessor based control enables the operator to easily enter the part length, angle data and quantity required to meet production requirements.

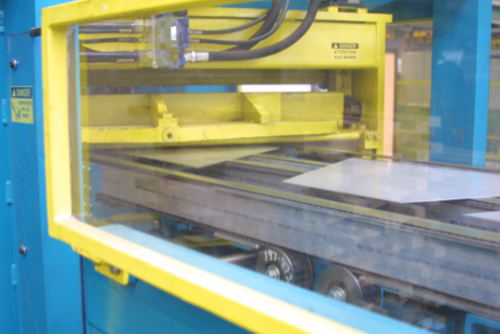

The Shear section is equipped with High Carbon, High Chrome shear blades that have 4 usable cutting edges. The shear can be set in a fixed location for cutting either square or angular cuts, required when producing squares, rectangles or parallelograms. It can also be set for pivotal operation, required when producing triangles or trapezoids.
Specifications
| Available widths | 48", 60", 72" (1219 mm, 1524 mm, 1828 mm) |
| Minimum material thickness | .015" (.38mm) |
| Maximum material thickness | .063" (1.6mm) |
| Shear Strength | 50,000 psi (35 kg/mm2) |
| Tensile Strength | 67,000 psi (47 kg/mm2) |
| Yield Strength | 55,000 psi (38,5 kg/mm2) |
| Roll Size | 3.375" (65.7 mm) dia. & 4.167" (107 mm) dia. |
| Line Speed | 10 fpm to 100 fpm (3 - 30 mpm) |
| Part Tolerance: | |
|---|---|
| Length | ± 1/32" (± 3/4 mm) to 50 fpm (15 mpm)
± 1/16" (± 1-1/2 mm) to 100 fpm (31 mpm) ± 3/32" (± 2-1/4 mm) to 150 fpm (45 mpm) |
Available Options
- • Chrome Rolls
- • Variable Speed Control 15 to 150 fpm (4.5 to 45 mpm)
- • Vinyl Applicator
- • HVAC Beading
- • Recoiling
