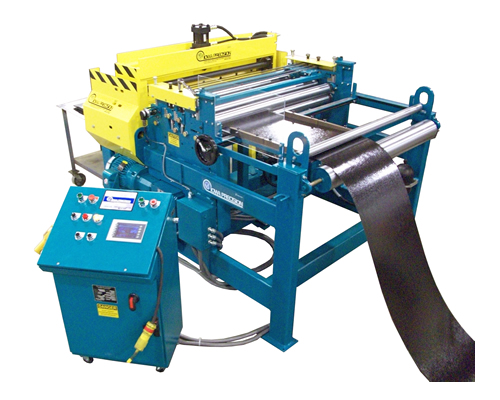

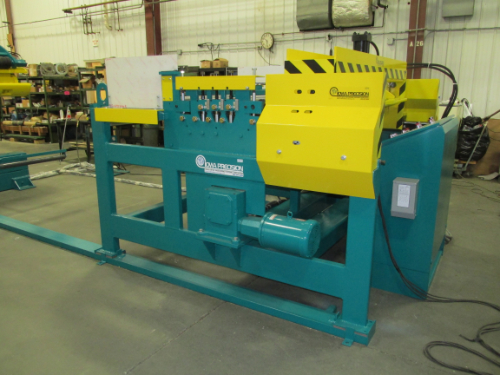

Econo Shear
A low cost, easy to use Cut to Length System that will remove coil set and cut to length in a self contained, compact unit.
Coil set is removed by the standard 4-roll straightener.
Specifications
| Available widths | 48", 60", 72" (1219mm, 1524mm, 1828mm) |
| Minimum material thickness | .015" (.38mm) |
| Maximum material thickness | .078" (2mm) |
| Shear Strength | 50,000 psi (35 kg/mm2) |
| Tensile Strength | 67,000 psi (47 kg/mm2) |
| Yield Strength | 55,000 psi (38.5 kg/mm2) |
| Roll Size | 3.375" (65.7 mm) dia. & 4.167" (107 mm) dia. |
| Line Speed | 25 fpm to 50 fpm |
| Part Tolerance: | |
|---|---|
| Length | ± 1/32" (± 3/4 mm) @ 60" (1524 mm) |
Available Options
- • 6- Roll Powered Straightener
- • Hardened and Ground Rolls
- • Chrome Rolls
- • Variable Speed Control up to 150 fpm
- • Vinyl Applicator
- • HVAC Beading
- • Recoiling
