Cut to Length - 4 (CTL - 4)

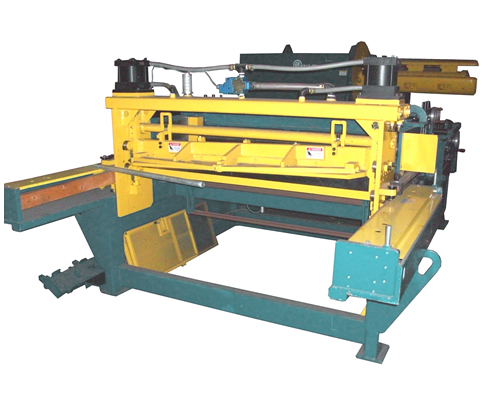

The Cut to Length 4 is an automatic blanking machine designed to produce finished blanks or sheets from coil stock. The powered 6 roll straightener section removes coil set and the flying shear assembly cuts the material to length. The unit incorporates a microprocessor equipped controller to insure much higher quality of blank tolerance and higher production rates.
Optical encoders produce very close tolerances by constantly monitoring the material and the traveling shear head. A sophisticated servo system is used to accelerate, control and decelerate the shear head travel to produce the maximum cuts per minute.
Specifications
| Available widths | 48", 60", 72" (1219mm, 1524mm, 1828mm) |
| Min. Coil Width | 12" (305 mm) |
| Minimum material thickness | .024" (.6 mm) mild steel |
| Maximum material thickness | .135" (3.4 mm) mild steel |
| Shear Strength | 50,000 psi (35 kg/mm2) |
| Tensile Strength | 67,000 psi (47 kg/mm2) |
| Yield Strength | 55,000 psi (38.5 kg/mm2) |
| Roll Size | 5.200" (132 mm) |
Line Speed .015" - .070" (0.4 - 1.8 mm) .070" - .135" (1.8 - 3.4 mm) |
15 fpm to 250 fpm (4.5 to 75 mpm) 15 fpm to 100 fpm (4.5 to 30 mpm) |
| Part Tolerance: | |
|---|---|
Length 15 - 150 fpm (4.5 - 45 mpm) 150 - 250 fpm (45 - 75 mpm) |
± .015" (± .4 mm) ± .030" (± .8 mm) |
Available Options
- • Chrome Rolls
- • Vinyl Applicator
- • Recoiling
