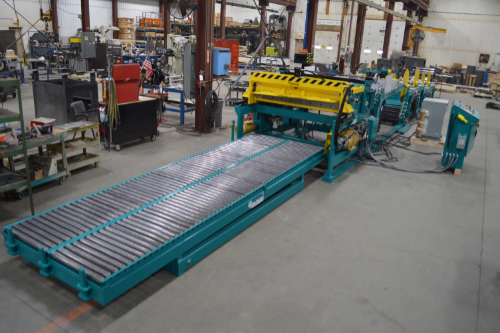

Econo Slear
A low cost, easy to use, Multi-Blanking System that will remove coil set, slit to width, and cut to length in a self contained, compact unit.
Higher production is assured with the ability of this machine to make multiple slits to the material before it is cut to length.
Coil set is removed by the standard 4-roll straightener.
Specifications
| Available widths | 48", 60", 72" (1219mm, 1524mm, 1828mm) |
| Minimum material thickness | .015" (.38mm) |
| Maximum material thickness | .078" (2mm) |
| Shear Strength | 50,000 psi (35 kg/mm2) |
| Tensile Strength | 67,000 psi (47 kg/mm2) |
| Yield Strength | 55,000 psi (38.5 kg/mm2) |
| Roll Size | 4.167" (107 mm) dia. |
| Line Speed | 25FPM to 150FPM |
| Part Tolerance: | |
|---|---|
| Length | ± 1/32" (+ 3/4 mm) |
| Slit Width | ± .007" (.18 mm) |
Available Options
- • 6- Roll Powered Straightener
- • Variable Speed Control
- • HVAC Beading
- • Recoiling
