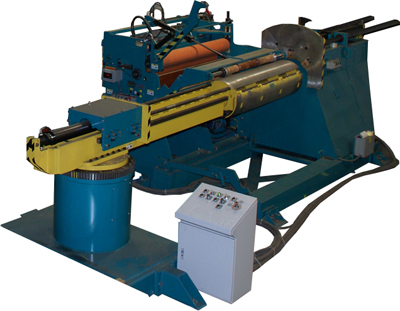

Precision Recoiling

This recoiling system produces tight, evenly wound coils following a slitting or other coil processing operation. It is designed for use as a spin-down tension recoiler to convert master coils into smaller coils. This system can also be used to salvage an unused section of a coil in a processing line.

The system is designed to recoil multiple coils. It can follow a slitting line, multi-blanking line, or other piece of coil processing equipment.

The system is designed to recoil multiple coils. It can follow a slitting line, multi-blanking line, or other piece of coil processing equipment.

Specifications

Coil Winding Capacity 20,000 lbs. (9080 kg)
O.D. Capacity 24" to 64" (610 mm - 1625 mm)
Producible Coil I.D.'s 20" (508 mm)
Rewind Tension Variable, 0-3,500 lbs. (0 - 1590 kg)
Line Speed Variable, 0 - 150 FPM (0 - 45 MPM)
Material Thickness Range .015" - .075" (0.38 mm - 1.90 mm)
Minimum Slit Strip Width 3" (51 mm) including outside edges
Drive Variable speed based on application
Expansion Pneumatic expansion with gripper assembly

Note:
When doing multiple coils it is recommended to use a looping pit with Ultrasonic Loop Control. IPI can assist you in determining what depth pit is required for variance in material thickness across the width of a coil.



Available Options

  • Ultra-sonic loop control
  • Bridge tablel
  • Coilcar unload
  • Hydraulic push off
  • Turnstyle
  • Downlayer
  • Quick change separator shafts
