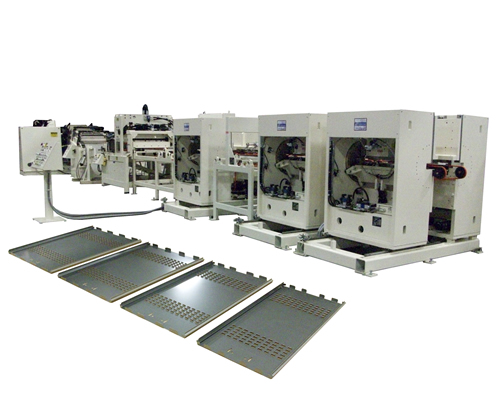

A complete fabrication line that manufactures furnace doors from pre-painted coils. The operator enters the part numbers and quantities to create the manufacturing recipe and starts the line. The equipment will then automatically blank and form the doors per the recipe. Once the line is full in each station, the controls will pause production until the operator removes the finished door from the exit conveyor (not shown).

The line includes:

• Coil Car
• Uncoiler
• Straightener
• Bridge Table
• Ultrasonic loop control Coil Processor (Roll feed, 5 Edge Notchers, Louver Die and Shear)
• Part Inverter
• Top/Bottom Wing Bender
• Part Rotator
• 2 Additional Wing Benders

Specifications

Widths	14" - 36" (355 mm - 914 mm)
Gauges	.036" (0.91 mm)
Coil Weight	10,000 lbs. (4,540 kg.)
Coil I. D.	19½" - 24½" (495 mm - 620 mm)
Coil O. D. Max.	64" (1625 mm)
Speed	3 ppm
Length	34" (863 mm)
Feed Rolls	Hardened & Chromed
Straightener	(7) Roll (Straightener only)
Available Options
• Up-ender	• Exit Conveyors
• Traversing Uncoiler	• Dual Head Uncoiler
• Peeler Table	• B&K Leveler
• Automated Stackers	• Rollformers
